W13. Floating-Point Instructions, High-Level Program Translation, Single-Cycle Processor Implementation

Author

Artem Burmyakov

Published

November 28, 2025

1. Summary

1.1 Floating-Point Instructions in RISC-V

RISC-V extends its instruction set architecture with dedicated support for floating-point operations. This is essential for scientific computing, graphics, signal processing, and any application requiring real numbers with decimal precision. Unlike integers, floating-point numbers can represent very large or very small values using the IEEE 754 standard.

1.1.1 Floating-Point Registers

RISC-V provides 32 dedicated floating-point registers, separate from the integer registers. These are named f0 through f31. Each floating-point register can hold either a single-precision (32-bit) or double-precision (64-bit) floating-point number.

The floating-point registers have ABI (Application Binary Interface) names that indicate their conventional usage:

Register ABI Name Purpose
f0-f7 ft0-ft7 Temporary registers (caller-saved)
f8-f9 fs0-fs1 Saved registers (callee-saved)
f10-f11 fa0-fa1 Function arguments / return values
f12-f17 fa2-fa7 Function arguments
f18-f27 fs2-fs11 Saved registers (callee-saved)
f28-f31 ft8-ft11 Temporary registers (caller-saved)

Key point: Register f10 (also known as fa0) is used for passing the first floating-point argument to functions and for returning floating-point results.

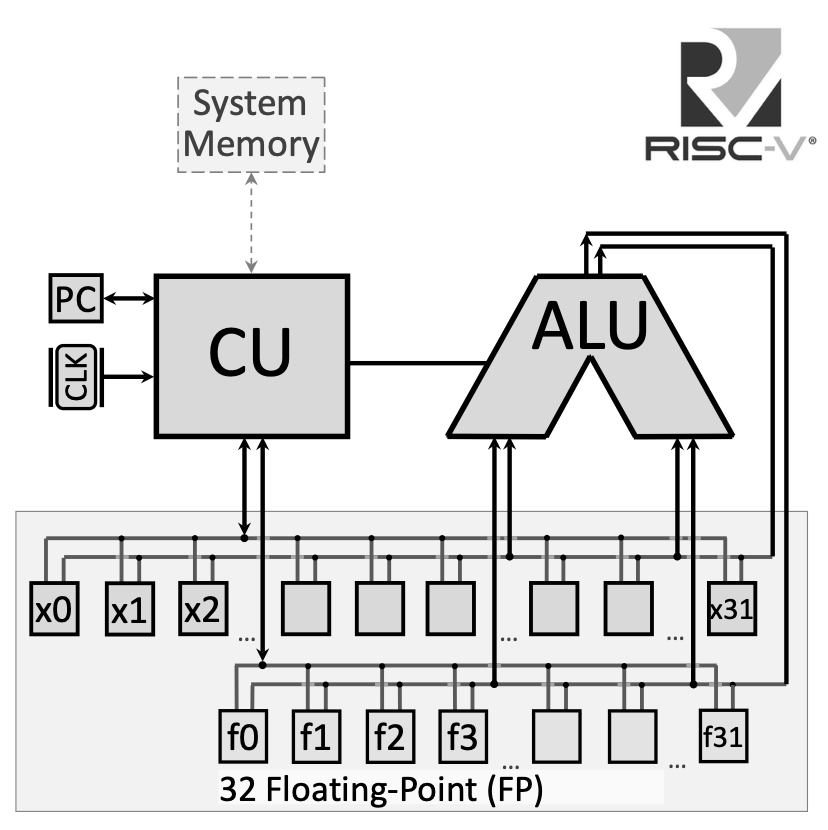

1.1.2 RISC-V Architecture Layout with Floating-Point Unit

The RISC-V processor architecture includes a separate floating-point unit alongside the integer unit:

The floating-point registers connect to a dedicated bus for handling floating-point operations, separate from the integer register file. This allows the processor to execute floating-point and integer operations in parallel in more advanced implementations.

1.1.3 Floating-Point Arithmetic Instructions

RISC-V provides arithmetic operations for both single-precision (.s suffix) and double-precision (.d suffix) floating-point numbers:

Single-Precision Operations:

  • fadd.s fd, fs1, fs2: Floating-point addition — \(fd = fs1 + fs2\)
  • fsub.s fd, fs1, fs2: Floating-point subtraction — \(fd = fs1 - fs2\)
  • fmul.s fd, fs1, fs2: Floating-point multiplication — \(fd = fs1 \times fs2\)
  • fdiv.s fd, fs1, fs2: Floating-point division — \(fd = fs1 / fs2\)
  • fsqrt.s fd, fs1: Square root — \(fd = \sqrt{fs1}\)

Double-Precision Operations:

  • fadd.d fd, fs1, fs2: Double-precision addition — \(fd = fs1 + fs2\)
  • fsub.d fd, fs1, fs2: Double-precision subtraction — \(fd = fs1 - fs2\)
  • fmul.d fd, fs1, fs2: Double-precision multiplication — \(fd = fs1 \times fs2\)
  • fdiv.d fd, fs1, fs2: Double-precision division — \(fd = fs1 / fs2\)
  • fsqrt.d fd, fs1: Double-precision square root — \(fd = \sqrt{fs1}\)
1.1.4 Floating-Point Comparison Instructions

Comparison instructions write their result to an integer register (not a floating-point register), setting it to 1 if the condition is true, or 0 if false:

Single-Precision Comparisons:

  • feq.s rd, fs1, fs2: Set if equal — \(rd = 1\) if \(fs1 == fs2\), else \(rd = 0\)
  • flt.s rd, fs1, fs2: Set if less than — \(rd = 1\) if \(fs1 < fs2\), else \(rd = 0\)
  • fle.s rd, fs1, fs2: Set if less or equal — \(rd = 1\) if \(fs1 \le fs2\), else \(rd = 0\)

Double-Precision Comparisons:

  • feq.d rd, fs1, fs2: Double-precision equality check
  • flt.d rd, fs1, fs2: Double-precision less than
  • fle.d rd, fs1, fs2: Double-precision less or equal
1.1.5 Floating-Point Data Transfer Instructions

To move data between memory and floating-point registers:

  • flw fd, offset(rs): Load single-precision float from memory — \(fd = \text{Memory}[rs + offset]\)
  • fld fd, offset(rs): Load double-precision float from memory — \(fd = \text{Memory}[rs + offset]\)
  • fsw fs, offset(rs): Store single-precision float to memory — \(\text{Memory}[rs + offset] = fs\)
  • fsd fs, offset(rs): Store double-precision float to memory — \(\text{Memory}[rs + offset] = fs\)
1.1.6 Floating-Point Move Instructions

To copy values between floating-point registers:

  • fmv.s fd, fs: Copy single-precision value from fs to fd
  • fmv.d fd, fs: Copy double-precision value from fs to fd
1.1.7 System Calls for Floating-Point I/O

RISC-V system calls provide input/output for floating-point values:

Code (a7) Service Arguments/Returns
2 Print float fa0 contains float value to print
3 Print double fa0 contains double value to print
6 Read float Reads float, stores in fa0
7 Read double Reads double, stores in fa0

Important: Note that floating-point I/O uses register fa0 (which is f10), not the integer register a0.

1.2 High-Level Program Translation into Machine Code

Understanding how high-level code becomes executable machine code is fundamental to computer architecture. This process involves multiple transformation stages, each serving a specific purpose.

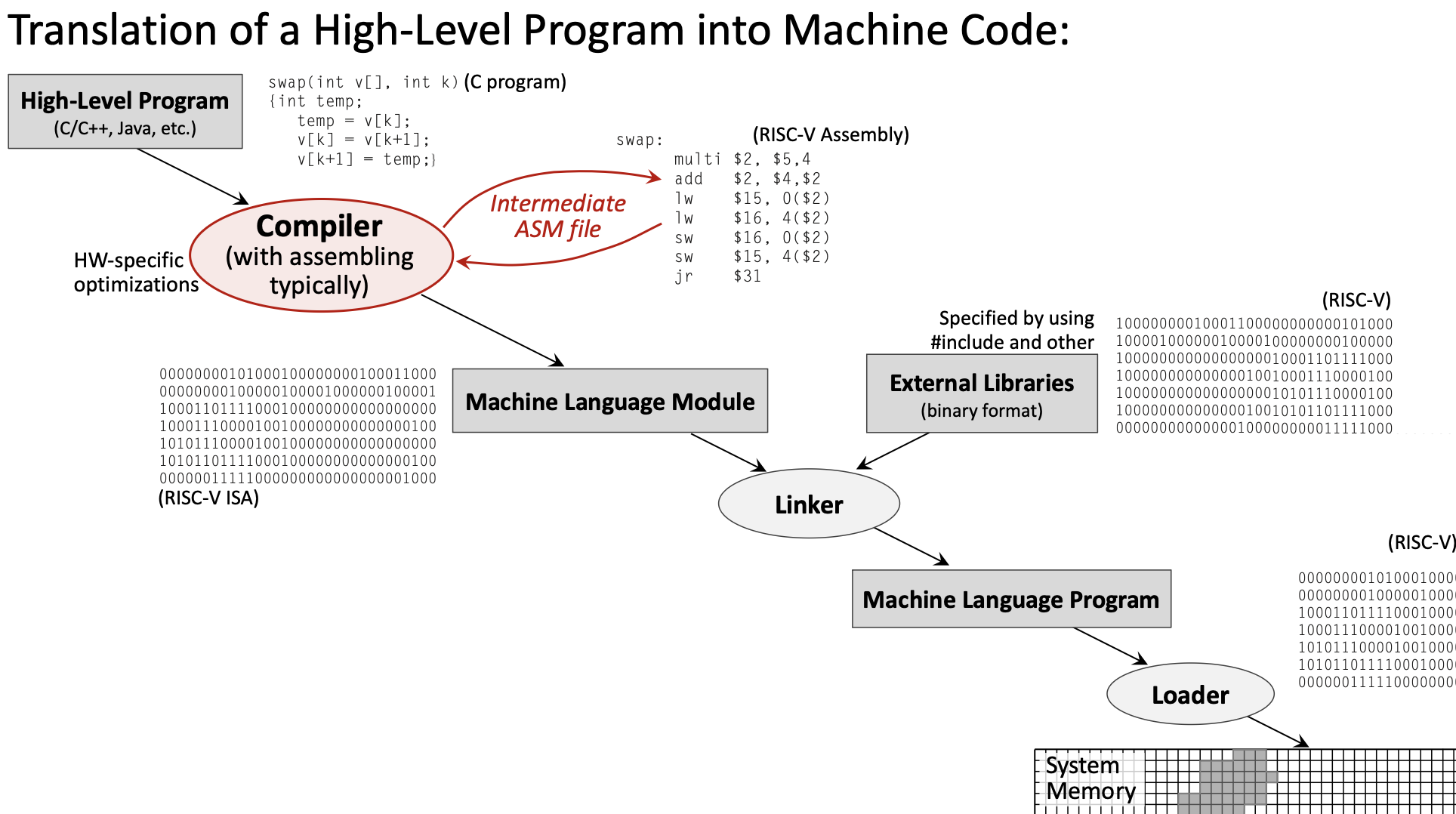

1.2.1 The Translation Pipeline

The complete translation from a high-level program (like C/C++) to executable machine code involves four main stages:

  1. High-Level Program (e.g., C code) →
  2. Compiler → Assembly Language Program →
  3. Assembler → Machine Language Module (Object file) →
  4. Linker → Executable Program →
  5. Loader → Program in Memory
1.2.2 The Compiler

The compiler transforms high-level source code into assembly language. This is where most optimization happens.

Key responsibilities:

  • Translate high-level constructs (loops, conditionals, functions) into assembly
  • Apply hardware-specific optimizations
  • Manage register allocation
  • Generate efficient code based on optimization level settings (e.g., -O0, -O2, -O3)

Example transformation:

// High-Level C Code
float f2c(float fahr) {
    return ((5.0f/9.0f) * (fahr - 32.0f));
}

Becomes assembly:

f2c:
    flw f0, const5, t0    # f0 = 5.0f
    flw f1, const9, t0    # f1 = 9.0f
    fdiv.s f0, f0, f1     # f0 = 5.0f/9.0f
    flw f1, const32, t0   # f1 = 32.0f
    fsub.s f10, f10, f1   # f10 = fahr - 32.0f
    fmul.s f10, f0, f10   # f10 = (5.0f/9.0f) * (fahr - 32.0f)
    ret
1.2.3 The Assembler

The assembler translates assembly language into machine language (binary object files).

Key responsibilities:

  • Convert mnemonics to binary opcodes
  • Resolve local labels to addresses
  • Generate relocation information for the linker
  • Create symbol tables

The assembler produces object files (.o files) containing:

  • Machine code (binary instructions)
  • Data sections
  • Symbol table (for linking)
  • Relocation information
1.2.4 The Linker

The linker combines multiple object files and external libraries into a single executable.

Key responsibilities:

  • Resolve external references (functions/variables defined in other files)
  • Combine code and data sections from multiple object files
  • Link with external libraries (standard library, math library, etc.)
  • Assign final memory addresses
1.2.5 The Loader

The loader is part of the operating system that loads the executable into memory for execution.

Key responsibilities:

  • Allocate memory for the program
  • Load code and data segments
  • Set up the stack and heap
  • Initialize the Program Counter to the program’s entry point
1.2.6 Hardware Dependency

The translation stages differ in their hardware dependency:

  • Hardware-Independent: High-level source code (portable across platforms)
  • Hardware-Dependent: Assembly, object code, and executables (specific to RISC-V, x86, ARM, etc.)

This separation is why the same C program can be compiled for different processor architectures.

1.3 RISC-V Instruction Encoding

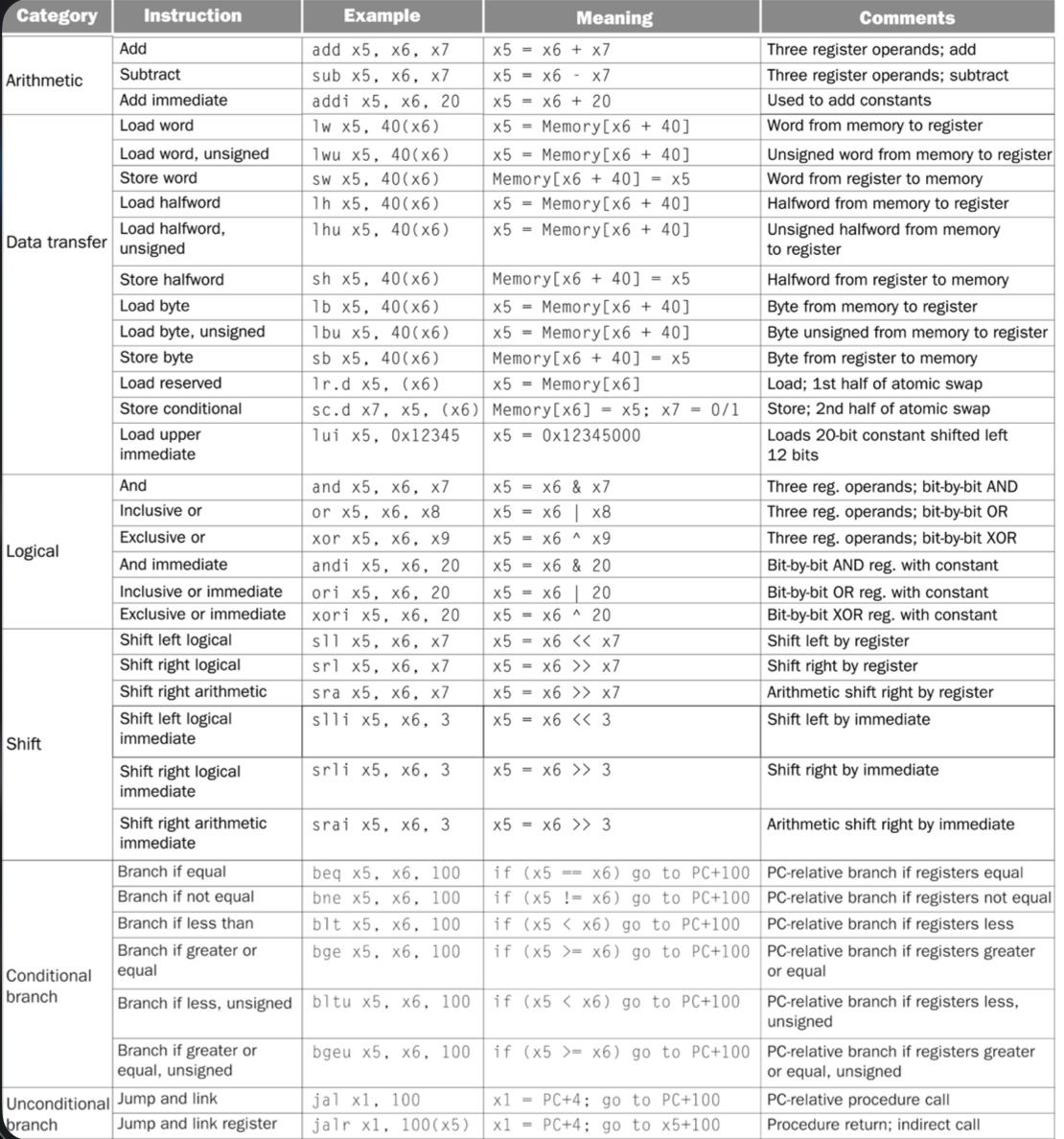

Every RISC-V instruction is encoded as exactly 32 bits. Different instruction types use different bit field layouts to encode their operands.

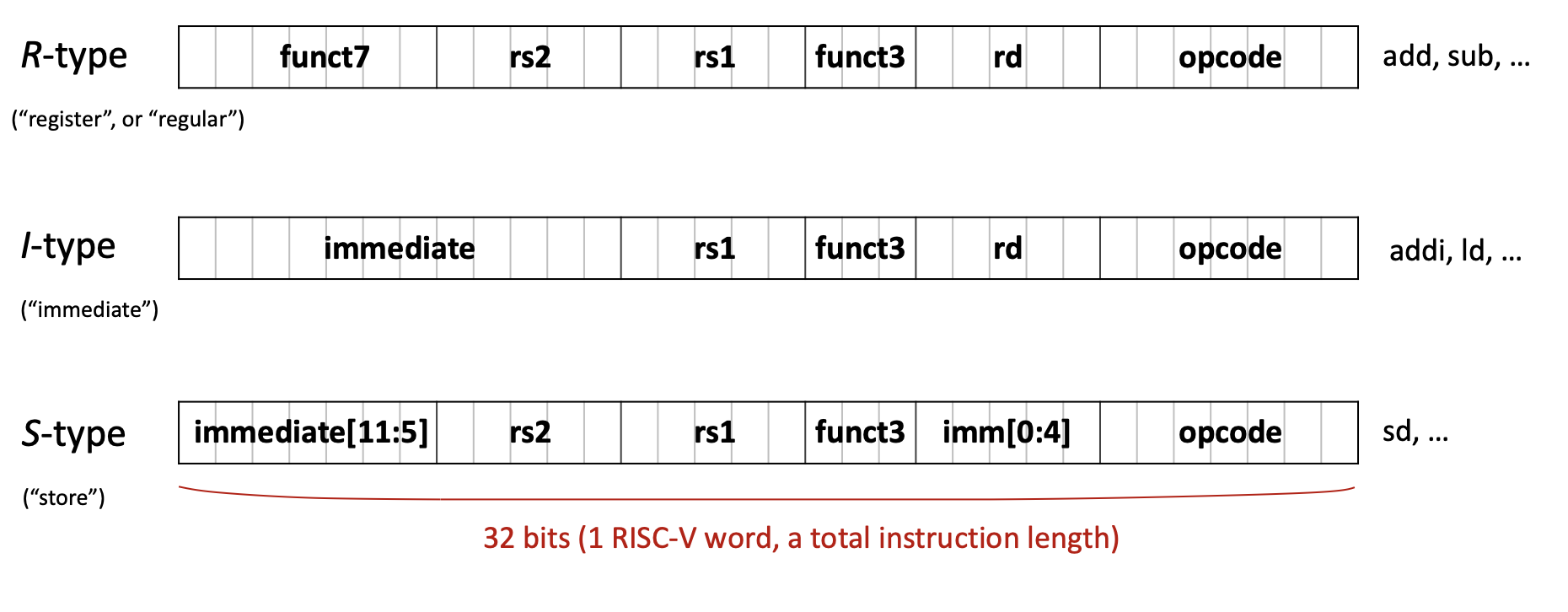

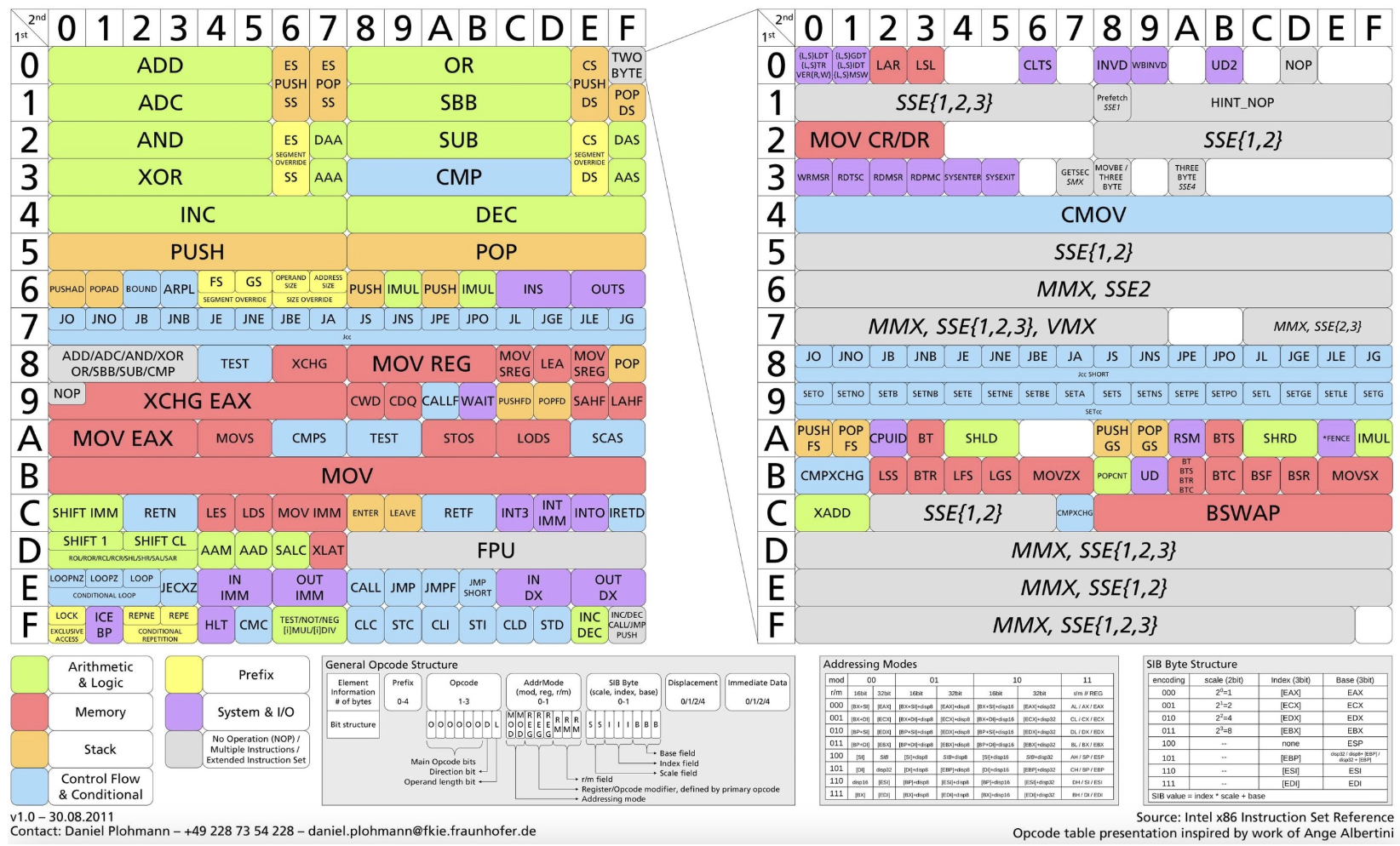

1.3.1 Main Instruction Formats

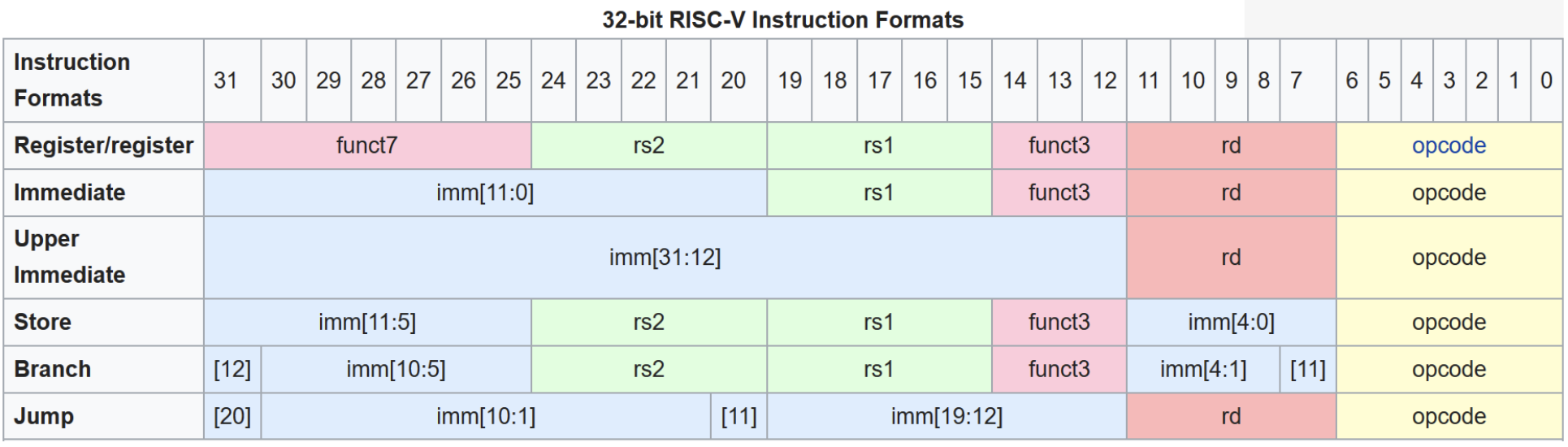

RISC-V uses six primary instruction formats:

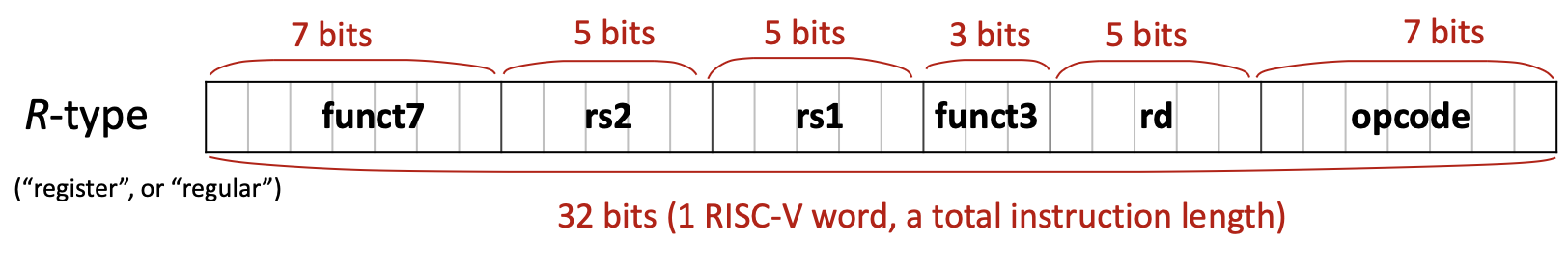

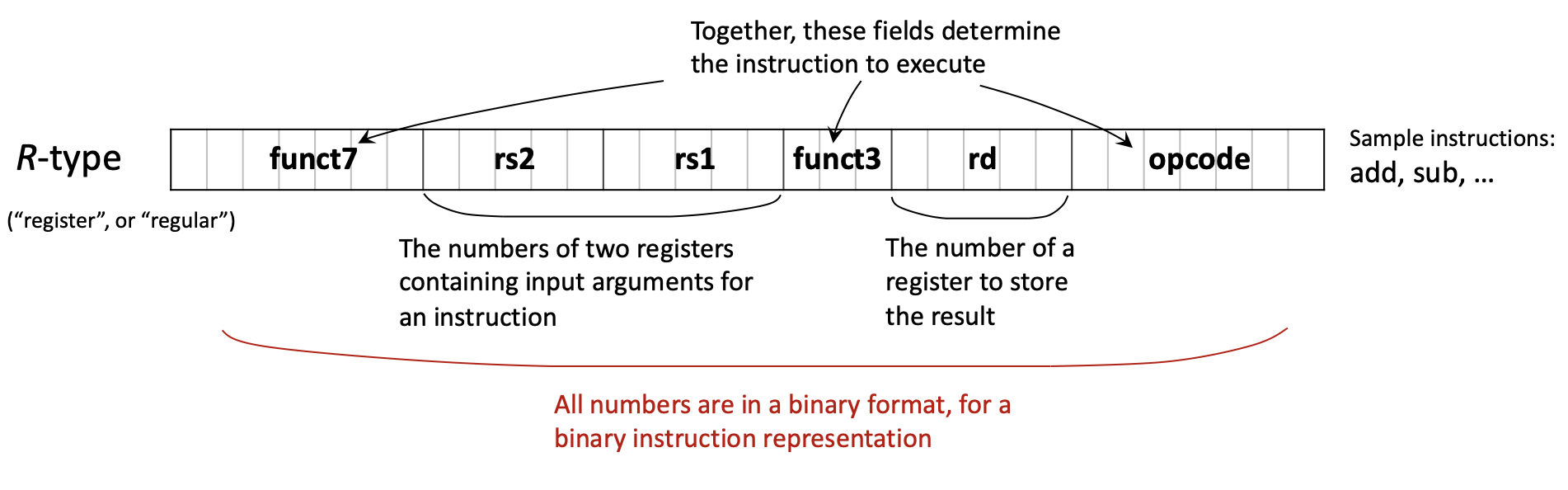

R-type (Register): For operations using only registers

funct7 (7) rs2 (5) rs1 (5) funct3 (3) rd (5) opcode (7)
  • Used for: add, sub, and, or, sll, srl, etc.
  • All operands are registers

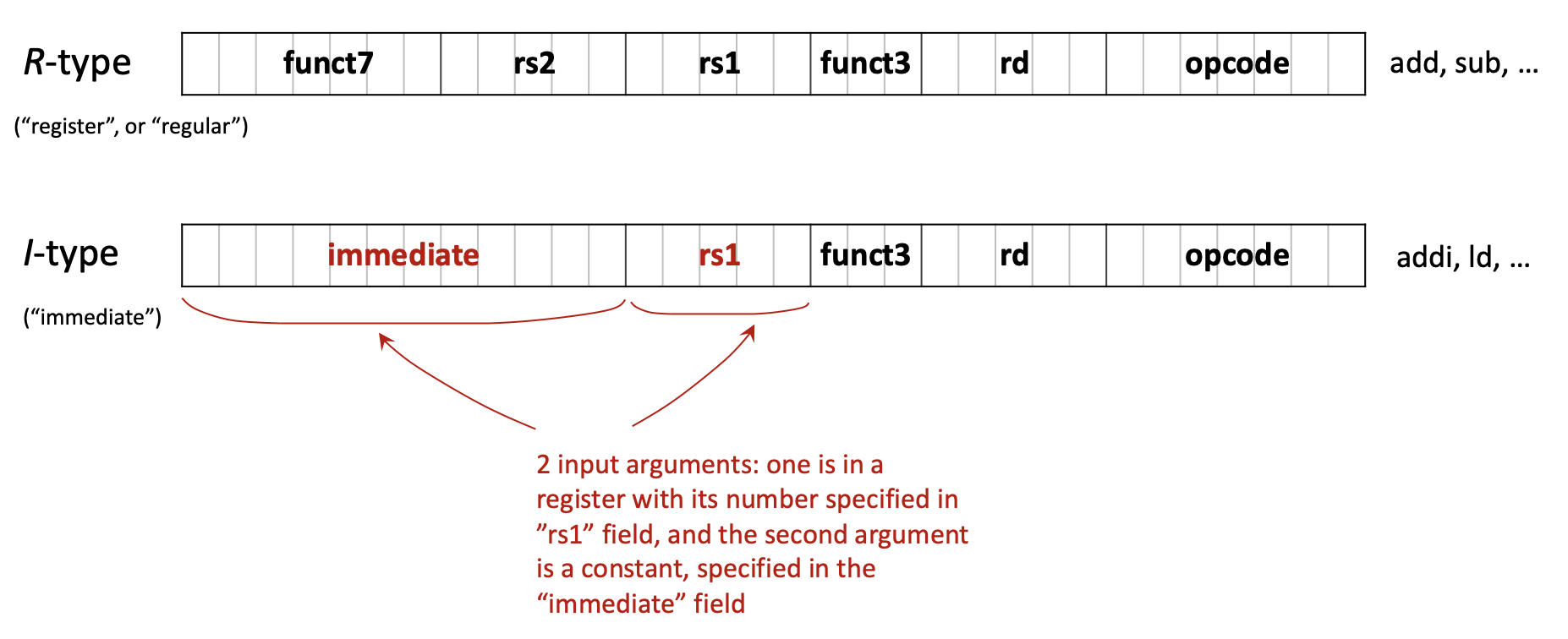

I-type (Immediate): For operations with immediate values and loads

imm[11:0] (12) rs1 (5) funct3 (3) rd (5) opcode (7)
  • Used for: addi, andi, ori, ld, lw, jalr, etc.
  • 12-bit signed immediate value

S-type (Store): For store instructions

imm[11:5] (7) rs2 (5) rs1 (5) funct3 (3) imm[4:0] (5) opcode (7)
  • Used for: sw, sd, sb, etc.
  • Immediate is split across two fields

B-type (Branch): For conditional branches

imm[12|10:5] (7) rs2 (5) rs1 (5) funct3 (3) imm[4:1|11] (5) opcode (7)
  • Used for: beq, bne, blt, bge, etc.
  • Immediate encodes branch offset (shifted)

U-type (Upper immediate): For large immediates

imm[31:12] (20) rd (5) opcode (7)
  • Used for: lui, auipc
  • 20-bit immediate placed in upper bits

J-type (Jump): For unconditional jumps

imm[20|10:1|11|19:12] (20) rd (5) opcode (7)
  • Used for: jal
  • 20-bit immediate for jump offset

1.3.2 Example: Translating C to Binary

Let’s trace the translation of A[30] = h + A[30] + 1 where h is in register x21 and the base address of array A is in x18.

Step 1: Assign registers

  • h → x21
  • Base address of A → x18
  • Temporary → x5

Step 2: Write assembly

ld x5, 240(x18)    # Load A[30] (offset = 30 × 8 = 240 bytes for doubleword)
add x5, x21, x5    # x5 = h + A[30]
addi x5, x5, 1     # x5 = h + A[30] + 1
sd x5, 240(x18)    # Store result back to A[30]

Step 3: Identify instruction types

  • ld → I-type
  • add → R-type
  • addi → I-type
  • sd → S-type

Step 4: Encode to binary (example for ld x5, 240(x18))

  • Opcode for ld: 0000011 (3 in decimal)
  • rd: 00101 (5 in decimal)
  • funct3 for doubleword: 011
  • rs1: 10010 (18 in decimal)
  • immediate: 000011110000 (240 in binary)

Final binary: 000011110000 10010 011 00101 0000011

1.4 Single-Cycle Processor Implementation

A single-cycle processor executes each instruction in exactly one clock cycle. While simple to understand, this design has limitations that motivate more advanced implementations like pipelining.

1.4.1 Recap: RISC-V Architecture

Key characteristics:

  • Architecture type: RISC (Reduced Instruction Set Computer)
  • Memory type: Load-Store (only load/store instructions access memory)
  • Standard: Open Architecture
  • Address space: 32 or 64 bits
  • Instruction size: Fixed 32 bits

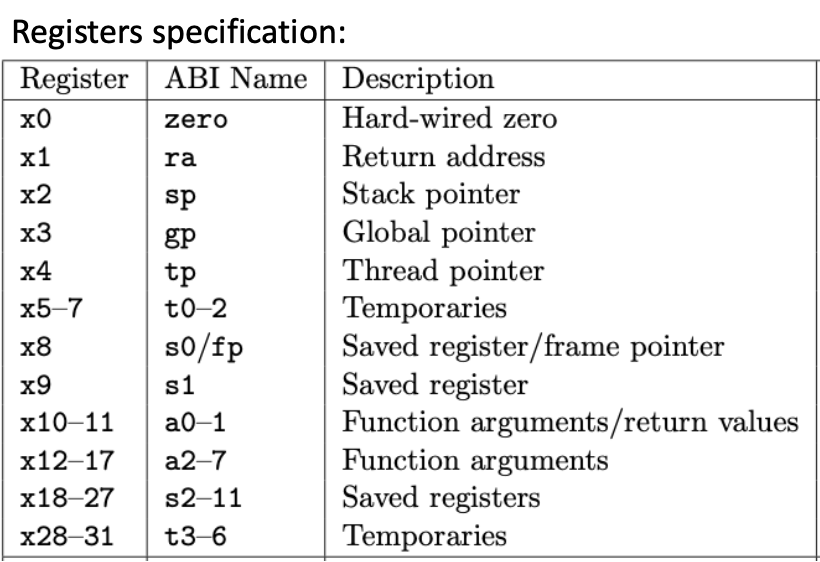

  • Registers: 32 general-purpose (x0-x31) + 32 floating-point (f0-f31)
  • Special register: PC (Program Counter)
1.4.2 The Program Counter (PC)

The Program Counter is a special-purpose register that holds the address of the next instruction to be executed. Understanding the PC is crucial for understanding how programs flow.

Key facts about PC:

  • Contains a memory address pointing to the next instruction
  • Automatically incremented by 4 after each instruction (since all RISC-V instructions are 4 bytes)
  • Modified by branch and jump instructions to change program flow

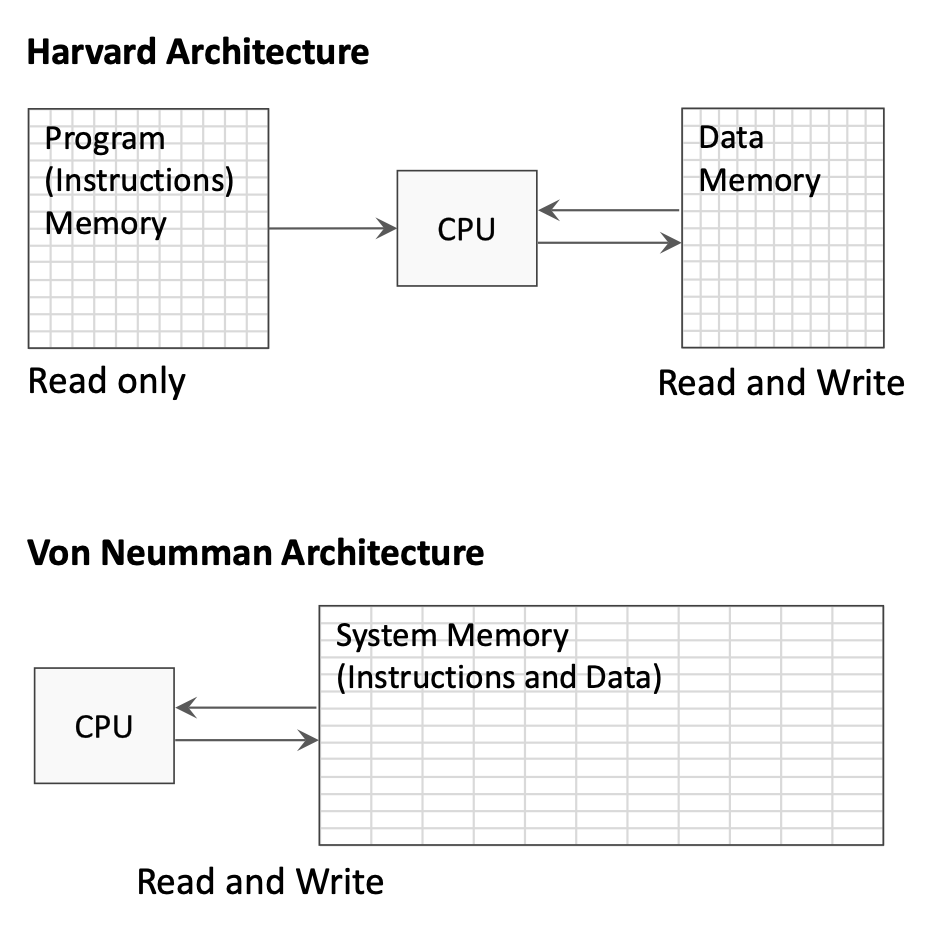

1.4.3 Harvard vs. Von Neumann Architecture

Two fundamental memory architectures exist:

Harvard Architecture:

  • Separate memory spaces for instructions and data
  • Instruction memory is read-only during execution
  • Data memory allows both read and write
  • Allows simultaneous instruction fetch and data access

Von Neumann Architecture:

  • Single unified memory for both instructions and data
  • Simpler design but can create memory access bottleneck
  • Instructions and data share the same bus

The single-cycle processor diagrams typically show separate instruction and data memories (Harvard style) for clarity.

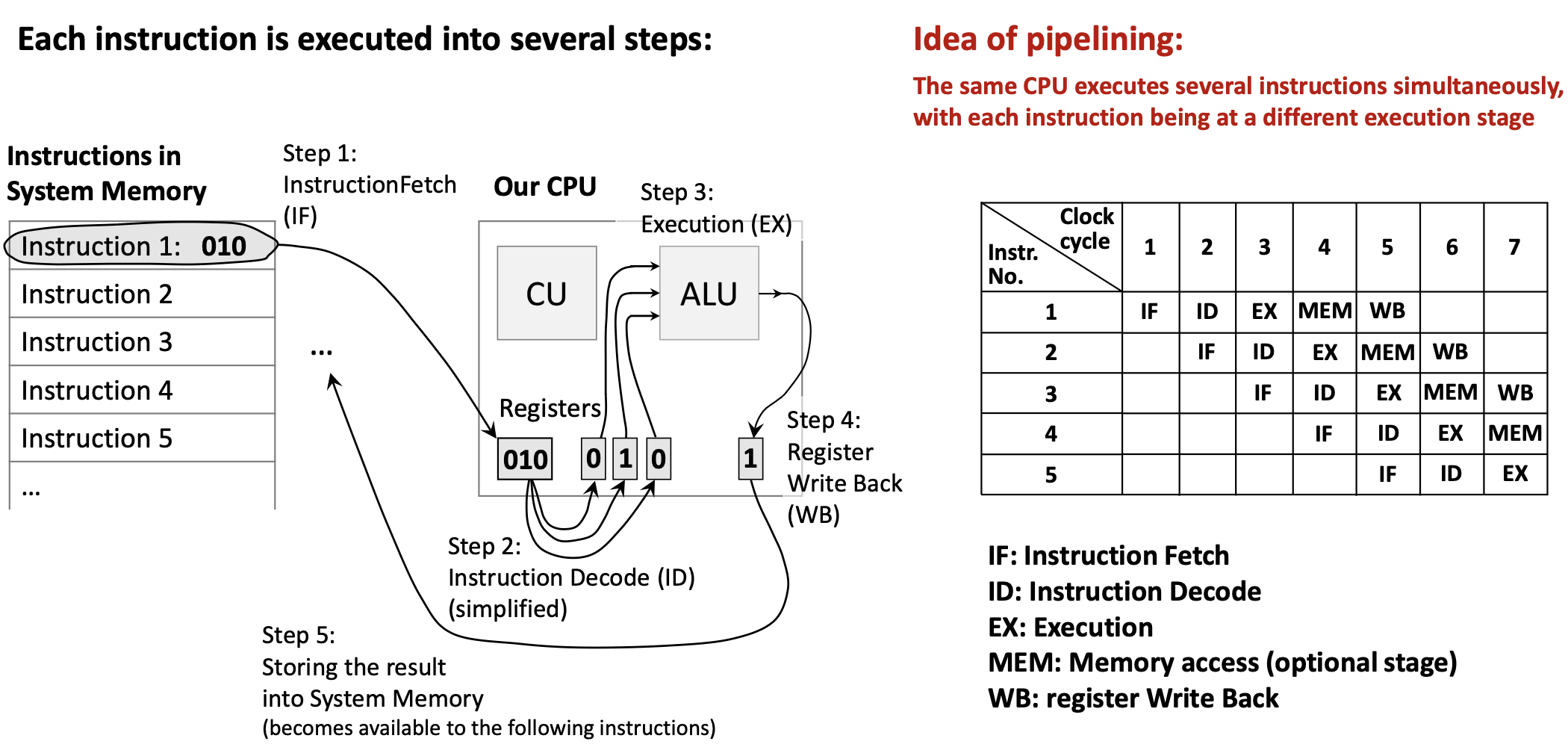

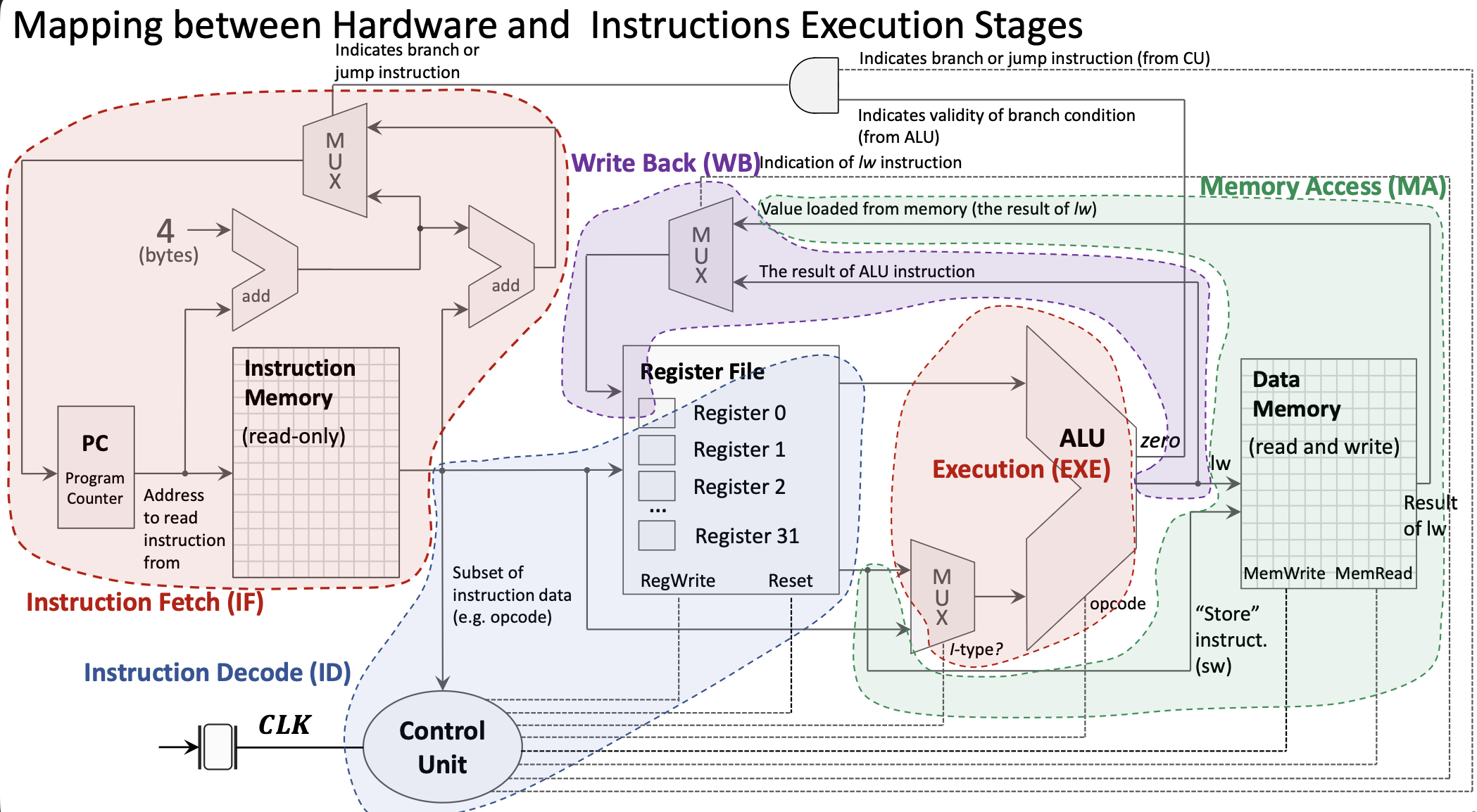

1.4.4 Instruction Execution Stages

Every instruction goes through a sequence of stages. In a single-cycle processor, all stages complete in one clock cycle:

1. Instruction Fetch (IF):

  • PC sends address to Instruction Memory
  • Instruction Memory returns the 32-bit instruction
  • PC is incremented by 4 in parallel

2. Instruction Decode (ID):

  • Instruction bits are distributed to appropriate components
  • Register file reads source registers (rs1, rs2)
  • Control Unit decodes opcode and generates control signals
  • Immediate value is extracted and sign-extended

3. Execution (EXE):

  • ALU performs the operation specified by the instruction
  • For R-type: operates on two register values
  • For I-type: operates on register value and immediate
  • MUX selects between register and immediate for second ALU input

4. Memory Access (MA):

  • Only used by load/store instructions
  • lw/ld: Read data from Data Memory
  • sw/sd: Write data to Data Memory
  • Other instructions bypass this stage

5. Write Back (WB):

  • Result written back to destination register in Register File
  • Source can be ALU result or value loaded from memory
  • MUX selects the appropriate source
1.4.5 Control Unit

The Control Unit (CU) decodes the opcode and generates control signals that configure the datapath:

  • ALU control: What operation the ALU should perform
  • ALUSrc: Select register value or immediate for ALU input
  • MemRead/MemWrite: Enable reading/writing Data Memory
  • RegWrite: Enable writing to Register File
  • MemtoReg: Select ALU result or memory value for write-back
  • Branch: Indicates a branch instruction
1.4.6 Branch Instruction Implementation

Branch instructions require special handling:

Branch address calculation:

  • Immediate value is extracted and shifted (branch offsets are multiples of 2)
  • Branch target = PC + (immediate × 2)

Branch condition evaluation:

  • ALU computes rs1 - rs2
  • “Zero” output indicates if rs1 equals rs2
  • AND gate combines “Branch” control signal with condition result

PC update:

  • MUX selects between PC+4 (sequential) and branch target
  • Selection controlled by branch condition result
1.4.7 Memory Access Instructions

Load and store instructions access the Data Memory:

Store Word (sw):

  1. ALU calculates address: rs1 + offset
  2. Value from rs2 goes to Data Memory write port
  3. MemWrite signal enables the write

Load Word (lw):

  1. ALU calculates address: rs1 + offset
  2. MemRead signal enables reading from Data Memory
  3. MUX selects memory value (instead of ALU result) for write-back
  4. Value written to destination register
1.4.8 Complete Single-Cycle Datapath

The complete datapath includes:

  • PC: Holds address of current instruction
  • Instruction Memory: Stores program instructions
  • Register File: 32 integer registers with 2 read ports and 1 write port
  • ALU: Performs arithmetic and logical operations
  • Data Memory: Stores program data
  • Control Unit: Generates control signals
  • Multiplexers: Select between alternative data paths
  • Adders: Compute PC+4 and branch targets
1.4.9 Clocking and Synchronization

All state elements (PC, Register File, Memories) are synchronized by the clock signal:

  • Rising edge: State elements capture new values
  • Clock period: Must be long enough for slowest instruction to complete
  • Reset signal: Initializes PC to starting address

The single-cycle design’s limitation: clock period is determined by the slowest instruction (typically load), making faster instructions wait unnecessarily.

1.5 Introduction to Pipelining

Pipelining is a fundamental technique that improves processor throughput by overlapping instruction execution.

1.5.1 The Pipelining Concept

Analogy: Think of an assembly line in a factory. While one car is being painted, another is being assembled, and a third is having its engine installed. No car finishes faster, but more cars are completed per unit time.

In a processor:

  • Each instruction still takes multiple stages (IF, ID, EXE, MEM, WB)
  • But different instructions occupy different stages simultaneously
  • When Instruction 1 is in ID stage, Instruction 2 can be in IF stage
  • Ideally, throughput increases by factor of pipeline depth

Benefits:

  • Higher instruction throughput (more instructions per second)
  • Better utilization of hardware components

Challenges:

  • Data hazards: Instruction needs data from previous instruction not yet available
  • Control hazards: Branch instructions disrupt the pipeline flow
  • Structural hazards: Hardware resource conflicts

Pipelining doesn’t reduce latency (time for one instruction) but dramatically increases throughput (instructions per second).

2. Definitions

  • Floating-Point Number: A number representation that can express very large or very small values using a sign, mantissa (significand), and exponent, following the IEEE 754 standard.
  • Single-Precision: A 32-bit floating-point format providing approximately 7 decimal digits of precision.
  • Double-Precision: A 64-bit floating-point format providing approximately 15-16 decimal digits of precision.
  • Floating-Point Register: One of 32 dedicated registers (f0-f31) in RISC-V used exclusively for floating-point operations.
  • Compiler: A program that translates high-level source code (like C) into assembly language, applying optimizations for the target hardware.
  • Assembler: A program that translates assembly language mnemonics into binary machine code (object files).
  • Linker: A program that combines multiple object files and libraries into a single executable program, resolving external references.
  • Loader: An operating system component that loads an executable program into memory and prepares it for execution.
  • Object File: The binary output of an assembler containing machine code, data, symbol tables, and relocation information.
  • Opcode: The portion of a machine instruction that specifies the operation to be performed.
  • Instruction Format: The layout of bit fields within a machine instruction (e.g., R-type, I-type, S-type).
  • R-type Instruction: A RISC-V instruction format where all operands are registers, used for arithmetic and logical operations.
  • I-type Instruction: A RISC-V instruction format with a 12-bit immediate value, used for immediate operations and loads.
  • S-type Instruction: A RISC-V instruction format used for store operations, with the immediate value split across two fields.
  • Program Counter (PC): A special register containing the memory address of the next instruction to be executed.
  • Single-Cycle Processor: A processor design where each instruction completes in exactly one clock cycle.
  • Datapath: The collection of hardware components (registers, ALU, memory, etc.) through which data flows during instruction execution.
  • Control Unit (CU): The processor component that decodes instructions and generates control signals to coordinate the datapath.
  • ALU (Arithmetic Logic Unit): The processor component that performs arithmetic and logical operations.
  • Instruction Fetch (IF): The stage where the processor reads an instruction from memory using the PC address.
  • Instruction Decode (ID): The stage where the instruction is interpreted and operands are read from registers.
  • Execution (EXE): The stage where the ALU performs the operation specified by the instruction.
  • Memory Access (MA): The stage where load/store instructions read from or write to data memory.
  • Write Back (WB): The stage where the result is written to the destination register.
  • Harvard Architecture: A computer architecture with separate memory spaces for instructions and data.
  • Von Neumann Architecture: A computer architecture with a single unified memory for both instructions and data.
  • Multiplexer (MUX): A circuit that selects one of several input signals based on a control signal and forwards it to the output.
  • Pipelining: A technique where multiple instructions are overlapped in execution, with each instruction in a different stage simultaneously.
  • Throughput: The number of instructions completed per unit time.
  • Latency: The time required to complete a single instruction from start to finish.

3. Examples

3.1. Fahrenheit to Celsius Conversion (Lab 11, Task 1)

Write a RISC-V program using floating-point instructions to convert temperature from Fahrenheit to Celsius using the formula: \[°C = (°F - 32.0) \times \frac{5.0}{9.0}\]

Click to see the solution

Key Concept: Use floating-point arithmetic instructions to perform the conversion. Constants must be stored in memory and loaded into floating-point registers.

The function:

.data:
const5:  .float 5.0      # Allocate float constant 5.0
const9:  .float 9.0      # Allocate float constant 9.0
const32: .float 32.0     # Allocate float constant 32.0

.text
f2c:                     # Function to convert Fahrenheit to Celsius
    flw f0, const5, t0   # f0 = 5.0f (t0 used as temp for address)
    flw f1, const9, t0   # f1 = 9.0f
    fdiv.s f0, f0, f1    # f0 = 5.0f / 9.0f
    flw f1, const32, t0  # f1 = 32.0f
    fsub.s f10, f10, f1  # f10 = fahr - 32.0f (input in f10)
    fmul.s f10, f0, f10  # f10 = (5.0f/9.0f) * (fahr - 32.0f)
    ret                  # Return (result in f10)

Complete program with main:

.data:
const5:  .float 5.0
const9:  .float 9.0
const32: .float 32.0

.text
main:
    li a7, 6             # System call code to read a float
    ecall                # Execute system call (input stored in fa0)
    fmv.s f10, fa0       # Move input to f10 (Note: f10 IS fa0, so this is redundant!)
    call f2c             # Call conversion function
    li a7, 2             # System call code to print a float
    ecall                # Print result (fa0 = f10 already contains result)
    li a7, 10            # System call code to exit
    ecall                # Exit program

f2c:
    flw f0, const5, t0
    flw f1, const9, t0
    fdiv.s f0, f0, f1
    flw f1, const32, t0
    fsub.s f10, f10, f1
    fmul.s f10, f0, f10
    ret

Discussion Question: Why is fmv.s f10, fa0 redundant?

Answer: Because f10 and fa0 are the same register! The ABI name fa0 is just an alias for register f10. So copying from fa0 to f10 does nothing.

Step-by-step explanation:

  1. Read input: System call 6 reads a float from user into fa0 (which is f10)
  2. Call function: f2c expects argument in f10, which already contains the input
  3. Inside f2c:
    • Load constants 5.0, 9.0, and 32.0 from memory
    • Compute 5.0 / 9.0 and store in f0
    • Subtract 32.0 from input temperature
    • Multiply by 5.0/9.0 to get Celsius
  4. Print result: System call 2 prints the float in fa0 (which is the result in f10)

Answer: For input 212°F, the program outputs 100.0 (the boiling point of water in Celsius).

3.2. Sphere Surface Area and Volume (Lab 11, Task 2)

Write a RISC-V program to compute the surface area and volume of a sphere using the formulas: \[\text{surfaceArea} = 4.0 \times \pi \times r^2\] \[\text{volume} = \frac{4.0}{3.0} \times \pi \times r^3\]

Hint: Assume \(\pi = 3.14159\)

Click to see the solution

Key Concept: Use floating-point multiplication to compute powers (\(r^2 = r \times r\), \(r^3 = r \times r \times r\)) and combine with constants.

.data
pi:      .float 3.14159
four:    .float 4.0
three:   .float 3.0
sa_msg:  .asciiz "Surface Area: "
vol_msg: .asciiz "\nVolume: "
prompt:  .asciiz "Enter radius: "

.text
main:
    # Print prompt
    li a7, 4
    la a0, prompt
    ecall

    # Read radius from user
    li a7, 6
    ecall
    fmv.s f10, fa0           # f10 = radius

    # Load constants
    flw f0, pi, t0           # f0 = pi
    flw f1, four, t0         # f1 = 4.0
    flw f2, three, t0        # f2 = 3.0

    # Calculate r^2
    fmul.s f3, f10, f10      # f3 = r * r = r^2

    # Calculate r^3
    fmul.s f4, f3, f10       # f4 = r^2 * r = r^3

    # Calculate surface area: 4.0 * pi * r^2
    fmul.s f5, f1, f0        # f5 = 4.0 * pi
    fmul.s f5, f5, f3        # f5 = 4.0 * pi * r^2 (surface area)

    # Calculate volume: (4.0/3.0) * pi * r^3
    fdiv.s f6, f1, f2        # f6 = 4.0 / 3.0
    fmul.s f6, f6, f0        # f6 = (4.0/3.0) * pi
    fmul.s f6, f6, f4        # f6 = (4.0/3.0) * pi * r^3 (volume)

    # Print surface area
    li a7, 4
    la a0, sa_msg
    ecall

    li a7, 2
    fmv.s fa0, f5            # Move surface area to fa0 for printing
    ecall

    # Print volume
    li a7, 4
    la a0, vol_msg
    ecall

    li a7, 2
    fmv.s fa0, f6            # Move volume to fa0 for printing
    ecall

    # Exit
    li a7, 10
    ecall

Step-by-step:

  1. Read radius into f10
  2. Load constants: \(\pi\), 4.0, and 3.0
  3. Compute \(r^2\): Multiply radius by itself
  4. Compute \(r^3\): Multiply \(r^2\) by radius
  5. Surface area: \(4.0 \times \pi \times r^2\)
  6. Volume: \((4.0 / 3.0) \times \pi \times r^3\)
  7. Print results using system calls

Answer: For radius = 5.0:

  • Surface Area ≈ 314.159
  • Volume ≈ 523.599
3.3. Calculate Function f(x) (Lab 11, Task 3)

Write a program to calculate the following expression: \[f(x) = \frac{e^2}{\pi} \cdot x\]

Hint: Assume \(\pi = 3.14159\) and \(e = 2.71828\)

Click to see the solution

Key Concept: Pre-compute \(e^2\) as a constant or compute it at runtime, then divide by \(\pi\) and multiply by \(x\).

.data
pi:      .float 3.14159
e:       .float 2.71828
prompt:  .asciiz "Enter x: "
result:  .asciiz "f(x) = "

.text
main:
    # Print prompt
    li a7, 4
    la a0, prompt
    ecall

    # Read x from user
    li a7, 6
    ecall
    fmv.s f10, fa0           # f10 = x

    # Load constants
    flw f0, e, t0            # f0 = e
    flw f1, pi, t0           # f1 = pi

    # Calculate e^2
    fmul.s f2, f0, f0        # f2 = e * e = e^2

    # Calculate e^2 / pi
    fdiv.s f3, f2, f1        # f3 = e^2 / pi

    # Calculate f(x) = (e^2 / pi) * x
    fmul.s f4, f3, f10       # f4 = (e^2 / pi) * x

    # Print result message
    li a7, 4
    la a0, result
    ecall

    # Print result value
    li a7, 2
    fmv.s fa0, f4
    ecall

    # Exit
    li a7, 10
    ecall

Step-by-step:

  1. Read input \(x\) from user
  2. Load constants \(e\) and \(\pi\)
  3. Compute \(e^2\): fmul.s f2, f0, f0
  4. Compute \(e^2 / \pi\): fdiv.s f3, f2, f1
  5. Compute result: Multiply by \(x\)

Answer: For \(x = 1.0\):

  • \(e^2 \approx 7.389\)
  • \(e^2 / \pi \approx 2.351\)
  • \(f(1.0) \approx 2.351\)
3.4. Translate C Expression to RISC-V (Lecture 11, Example 1)

Translate the C expression A[30] = h + A[30] + 1 into RISC-V assembly and then into binary machine code.

Assume:

  • Variable h is assigned to register x21
  • Base address of array A is in register x18
  • Array A contains 64-bit doublewords
Click to see the solution

Key Concept: Break down the expression into basic operations: load from memory, add values, store back to memory.

Step 1: Write the assembly code

ld x5, 240(x18)    # Load A[30] into x5 (offset = 30 × 8 = 240)
add x5, x21, x5    # x5 = h + A[30]
addi x5, x5, 1     # x5 = h + A[30] + 1
sd x5, 240(x18)    # Store result back to A[30]

Step 2: Identify instruction types

Instruction Type Format
ld x5, 240(x18) I-type immediate | rs1 | funct3 | rd | opcode
add x5, x21, x5 R-type funct7 | rs2 | rs1 | funct3 | rd | opcode
addi x5, x5, 1 I-type immediate | rs1 | funct3 | rd | opcode
sd x5, 240(x18) S-type imm[11:5] | rs2 | rs1 | funct3 | imm[4:0] | opcode

Step 3: Encode ld x5, 240(x18) to binary

  • Opcode for ld: 0000011 (3)
  • rd = x5: 00101 (5)
  • funct3 for doubleword: 011 (3)
  • rs1 = x18: 10010 (18)
  • immediate = 240: 000011110000

Binary: 000011110000 10010 011 00101 0000011

Step 4: Encode add x5, x21, x5 to binary

  • Opcode for R-type: 0110011 (51)
  • rd = x5: 00101
  • funct3 for add: 000
  • rs1 = x21: 10101 (21)
  • rs2 = x5: 00101 (5)
  • funct7 for add: 0000000

Binary: 0000000 00101 10101 000 00101 0110011

Step 5: Encode addi x5, x5, 1 to binary

  • Opcode for I-type: 0010011 (19)
  • rd = x5: 00101
  • funct3 for addi: 000
  • rs1 = x5: 00101
  • immediate = 1: 000000000001

Binary: 000000000001 00101 000 00101 0010011

Step 6: Encode sd x5, 240(x18) to binary

  • Opcode for S-type: 0100011 (35)
  • funct3 for doubleword: 011
  • rs1 = x18: 10010
  • rs2 = x5: 00101
  • immediate = 240 split: imm[11:5] = 0000111, imm[4:0] = 10000

Binary: 0000111 00101 10010 011 10000 0100011

Answer: The complete binary encoding:

ld x5, 240(x18):   000011110000 10010 011 00101 0000011
add x5, x21, x5:   0000000 00101 10101 000 00101 0110011
addi x5, x5, 1:    000000000001 00101 000 00101 0010011
sd x5, 240(x18):   0000111 00101 10010 011 10000 0100011
3.5. Identify Instruction Stages (Lecture 11, Example 2)

For each of the following instructions, identify which execution stages are used:

  1. add x5, x6, x7
  2. lw x5, 0(x6)
  3. sw x5, 0(x6)
  4. beq x5, x6, label
Click to see the solution

Key Concept: Different instructions use different subsets of the five stages (IF, ID, EXE, MA, WB).

(a) add x5, x6, x7 (R-type arithmetic)

Stage Used? Activity
IF ✓ Fetch instruction from memory
ID ✓ Read x6 and x7 from register file
EXE ✓ ALU computes x6 + x7
MA ✗ No memory access needed
WB ✓ Write result to x5

(b) lw x5, 0(x6) (Load word)

Stage Used? Activity
IF ✓ Fetch instruction
ID ✓ Read x6 (base address)
EXE ✓ ALU computes address: x6 + 0
MA ✓ Read data from memory at computed address
WB ✓ Write loaded value to x5

(c) sw x5, 0(x6) (Store word)

Stage Used? Activity
IF ✓ Fetch instruction
ID ✓ Read x5 (value) and x6 (address)
EXE ✓ ALU computes address: x6 + 0
MA ✓ Write x5 value to memory
WB ✗ No register to write

(d) beq x5, x6, label (Branch)

Stage Used? Activity
IF ✓ Fetch instruction
ID ✓ Read x5 and x6; decode branch target
EXE ✓ ALU compares x5 and x6 (subtraction)
MA ✗ No memory access
WB ✗ No register to write

Answer:

  • add: IF, ID, EXE, WB
  • lw: IF, ID, EXE, MA, WB (uses all stages)
  • sw: IF, ID, EXE, MA
  • beq: IF, ID, EXE
3.6. Trace Pipeline Execution (Lecture 11, Example 3)

Show how the following sequence of instructions would execute in a 5-stage pipeline over time:

add x1, x2, x3
sub x4, x5, x6
and x7, x8, x9
or x10, x11, x12
Click to see the solution

Key Concept: In a pipeline, each instruction progresses through stages one at a time, while new instructions enter behind it.

Pipeline execution diagram:

Clock Cycle 1 2 3 4 5 6 7 8
add IF ID EX MA WB
sub IF ID EX MA WB
and IF ID EX MA WB
or IF ID EX MA WB

Explanation by clock cycle:

  • Cycle 1: add enters IF stage
  • Cycle 2: add moves to ID; sub enters IF
  • Cycle 3: add in EX; sub in ID; and enters IF
  • Cycle 4: add in MA; sub in EX; and in ID; or enters IF
  • Cycle 5: add completes (WB); sub in MA; and in EX; or in ID
  • Cycle 6: sub completes; and in MA; or in EX
  • Cycle 7: and completes; or in MA
  • Cycle 8: or completes

Throughput analysis:

  • Without pipelining: 4 instructions × 5 cycles = 20 cycles
  • With pipelining: 8 cycles (4 cycles to fill + 4 instructions)
  • Speedup: 20/8 = 2.5x (approaches 5x for longer sequences)

Answer: All 4 instructions complete in 8 clock cycles. Once the pipeline is full (cycle 4), one instruction completes every cycle.

3.7. Single-Cycle vs Pipelined Performance (Lecture 11, Example 4)

A single-cycle processor has the following stage delays:

  • IF: 200 ps
  • ID: 100 ps
  • EX: 200 ps
  • MA: 200 ps
  • WB: 100 ps

Calculate:

  1. The clock period for a single-cycle implementation
  2. The clock period for a pipelined implementation
  3. The speedup for executing 100 instructions
Click to see the solution

Key Concept: Single-cycle must wait for slowest instruction; pipelined clock is limited by slowest stage.

(a) Single-cycle clock period:

The clock must be long enough for any instruction to complete all stages: \[T_{single} = IF + ID + EX + MA + WB = 200 + 100 + 200 + 200 + 100 = 800 \text{ ps}\]

(b) Pipelined clock period:

The clock is limited by the slowest stage: \[T_{pipelined} = \max(IF, ID, EX, MA, WB) = \max(200, 100, 200, 200, 100) = 200 \text{ ps}\]

(c) Speedup for 100 instructions:

Single-cycle time: \[\text{Time}_{single} = 100 \times 800 \text{ ps} = 80,000 \text{ ps}\]

Pipelined time: First instruction takes 5 cycles, then one instruction completes each cycle: \[\text{Time}_{pipelined} = (5 + 99) \times 200 \text{ ps} = 104 \times 200 = 20,800 \text{ ps}\]

Speedup: \[\text{Speedup} = \frac{80,000}{20,800} \approx 3.85\]

Answer:

  • Single-cycle period: 800 ps
  • Pipelined period: 200 ps
  • Speedup: ~3.85x (approaches 4x = 800/200 for large instruction counts)
